Autel G-BOX2 Tool for Mercedes Benz All Keys Lost G-Box Upgrade Version Works with Autel MaxiIM IM608

Product Description

Key Features of the AUTEL G-BOX2:

• Fast Mercedes ECU data and EIS password calculation: The G-BOX2 utilizes advanced algorithms to quickly calculate Mercedes ECU data and EIS passwords, significantly reducing programming time.

• Compatibility with Autel MaxiIM IM608, IM508, and Auro IM600 with XP400: The G-BOX2 seamlessly integrates with these Autel diagnostic and programming tools, providing a comprehensive solution for Mercedes-Benz key programming.

• Designed for Mercedes-Benz vehicles with DAS3 CAN EIS/EZS: The G-BOX2 is specifically tailored to handle the DAS3 CAN EIS/EZS system found in Mercedes-Benz vehicles, ensuring compatibility and accurate programming.

• All keys lost solution: The G-BOX2 is particularly useful in situations where all keys to a Mercedes-Benz vehicle have been lost, eliminating the need for original keys or key fobs during the programming process.

Benefits of Using the AUTEL G-BOX2:

• Increased efficiency: The fast calculation speed and compatibility with Autel diagnostic tools streamline the key programming process, saving technicians valuable time.

• Enhanced versatility: The G-BOX2’s ability to handle all keys lost situations expands its applicability to a wider range of Mercedes-Benz vehicles.

• Improved accuracy: The G-BOX2’s specialized design for DAS3 CAN EIS/EZS ensures precise programming and prevents potential errors.

Here are the highlights of the Autel G-BOX2 Tool:

• Significantly reduced reading time: The Autel G-BOX2 can significantly reduce the reading time of W204 ECU data and W207 EIS by over 85%. This is a significant improvement over previous methods, which could take several hours to complete.

• No need to remove and reinsert the key: For W221 and W164 models after 2009, there is no need to remove and reinsert the key multiple times during the programming process. This saves time and effort, and makes the process more convenient for technicians.

• Supports Mercedes All Key Lost and BMW DME Reading: The Autel G-BOX2 Adapter can support Mercedes All Key Lost and BMW DME Reading. This allows technicians to program new keys for Mercedes-Benz vehicles even if all of the original keys have been lost. It also allows them to read and write Bosch engine ECU data on F-class BMW and MQB Volkswagen vehicles.

• Autel’s Advanced Diagnostic Tablets: The Autel G-Box Adapter works with Autel’s Advanced Diagnostic Tablets that support IMMO and Key Programming functions. This makes it a versatile tool that can be used for a wide range of diagnostic and programming tasks.

• Effective reading of ECU data: Compared to other adapters, the Autel G-Box Adapter is more effective at reading the ECU data from W204 and W207 EISs. This means that it is less likely to encounter errors during the programming process.

here is a summary of the G-BOX2 for Autel IM608:

Purpose:

The Autel G-BOX2 is a specialized tool designed to program Mercedes-Benz vehicles with DAS3 CAN EIS/EZS in all keys lost situations. It can also read and write Bosch engine ECU data on F-class BMW and MQB Volkswagen vehicles.

Key Features:

• Fast Mercedes ECU data and EIS password calculation
• Supports all keys lost programming for Mercedes-Benz vehicles
• Reads and writes Bosch engine ECU on F-class BMW and MQB Volkswagen vehicles
• Compatible with Autel’s advanced diagnostic tablets that support IMMO and key programming functions

Benefits:

• Reduces programming time for Mercedes-Benz vehicles
• Eliminates the need for original keys or key fobs in all keys lost situations
• Expands the applicability of key programming to a wider range of vehicles
• Enhances accuracy and prevents potential errors

Compatibility:

• Works with Autel MaxiIM IM608, IM508, and Auro IM600 with XP400
• Suitable for Mercedes-Benz W204, W207, W216, and W164 EISs after the year 2009

Connection Guide:

1. 1. Connect the G-Box2 to the vehicle’s OBDII port.
   2. Remove the fuse of the vehicle’s EIS and connect the relay ports to the fuse using the supplied fuse cable.
   3. If the vehicle has an electronic locking system (ELV), connect the K7 port and ELV plug using the supplied K-line cable.

1. Connect the G-Box2 to the Autel diagnostic tablet (MaxiIM IM608, IM508).

Additional Notes:

• The G-BOX2 can also be used to read and write ISN code for BMW vehicles in bench mode.
• The G-BOX2 is a valuable asset for any automotive locksmith or technician who specializes in Mercedes-Benz and BMW vehicles.

How to do on Bench When All Keys of Mercedes-Benz Vehicle are Lost

Notice:This Method is suitable for all Mercedes-Benz EISs that are already supported by Autel Diagnostic Tablet
Connection:
1. Plug the G-Box2 to the Mercedes-Benz EIS using the packed DB15 Cable
2. Plug to the DC port of G-Box2 using a power adapter (DV 12V)
3. Plug the G-Box2 to the Autel Diagnostic Tablet (MaxiIM IM608, IM508)

Reading Engine Password Operation on Bench
Use this method for Bosch ECUs supported by Autel Diagnostic Tablets supporting IMMO and Key Programming Functions?
Connection Steps:
1). Connect the G-BOX2 to Autel diagnostic tablet
2). Connect the G-BOX2 to Engine ECU
3). Connect to the DC port of G-BOX2 using a power adapter (DC 12V)

Front Panel:

1. DC Port: Provides +12V DC power supply for the tool’s operation.

2. CAN-H Port: A universal CAN bus interface that connects to the vehicle’s OBDII Pin 6, enabling communication with the vehicle’s CAN bus system.

3. K1 Port: A universal K-Line interface that connects to the vehicle’s OBDII Pin 1, facilitating communication with the vehicle’s K-Line protocol.

4. Status Indicator: A LED indicator that displays the current operating status of the tool. It may show different colors or patterns to indicate power, connection, or working status.

5. Relay Ports: These are dedicated ports for connecting relay cables, which are used to control the vehicle’s electrical system during key programming procedures.

6. +12V Power Port: A universal power input/output port that can provide or receive +12V DC power. It can be used to power other devices or connect to an external power source.

7. OBDII Connector: This 16-pin connector directly connects to the vehicle’s OBDII port, establishing a physical connection for communication and programming.

8. OBDII Female Connector: This connector is designed to connect the G-BOX2 to the main cable of an Autel diagnostic tablet, such as the MaxiIM IM608 or IM508.

Rear Panel:

9. CAN-L Port: Another universal CAN bus interface that connects to the vehicle’s OBDII Pin 14, providing redundant or alternative CAN communication with the vehicle’s CAN bus system.

10. K7 Port: An additional universal K-Line interface that connects to the vehicle’s OBDII Pin 7, offering alternative K-Line communication with the vehicle’s K-Line protocol.

11. GND Port: A universal power input/output port that provides or receives ground connection. It ensures proper grounding for electrical connections.

12. DB15 Port: This 15-pin connector is used with a dedicated DB15 cable for reading and writing multiple types of engine control units (ECUs). It allows for direct communication with specific ECUs for programming or data retrieval.

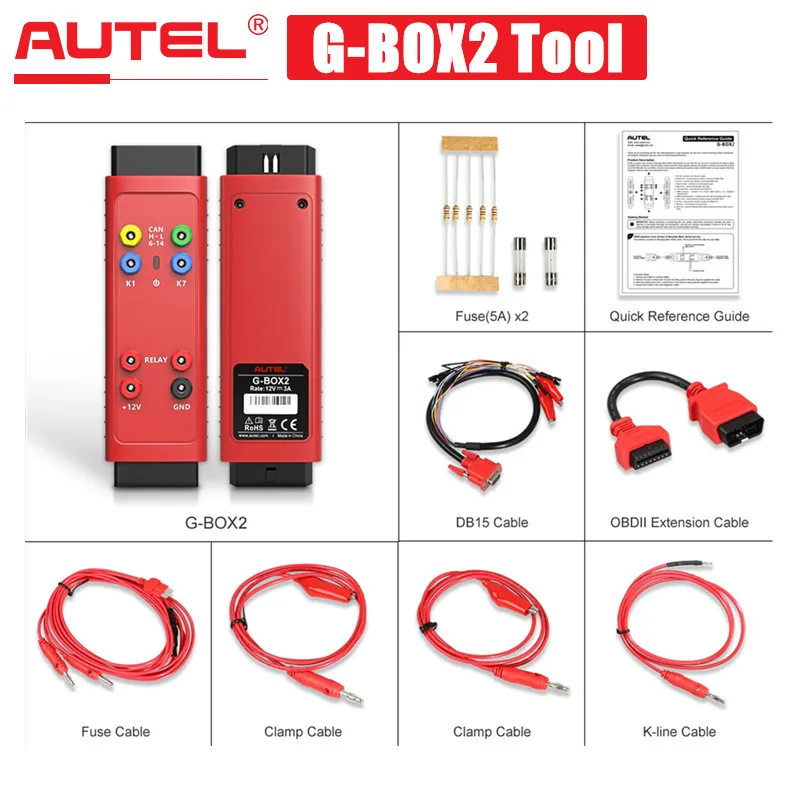

Autel G-BOX2 Tool Package includes:
1PC x Autel G-BOX2
1PC x DB15 Cable
1PC x K-Line Cable
1PC x Fuse Cable
2PCs x Fuse (5A)
2PCs x Clamp Cable
1PC x OBDII Extension Cable
1PC x Quick Reference Guide
